DJI Naza - M Lite + GPS Combo for Multiotor Controller

Naza-M Lite Features

• All-in-One Design
• Advanced attitude stabilize Algorithm
• Multiple flight control mode/intelligent switching
• GPS Module Available/Accurate Position hold
• Intelligent Orientation Control (IOC)
• Failsafe mode
• Low voltage protection
• Motor Arm and Motor Dis-arm
• Support Futaba S-Bus and PPM receiver
• Supported multi-rotor types
• Built-in Gimbal stabilization function
• Remote adjustment

• DJI NAZA M Lite v1.1 With GPS



  FEATURES

  DJI NAZA M Lite v1.1 With GPS

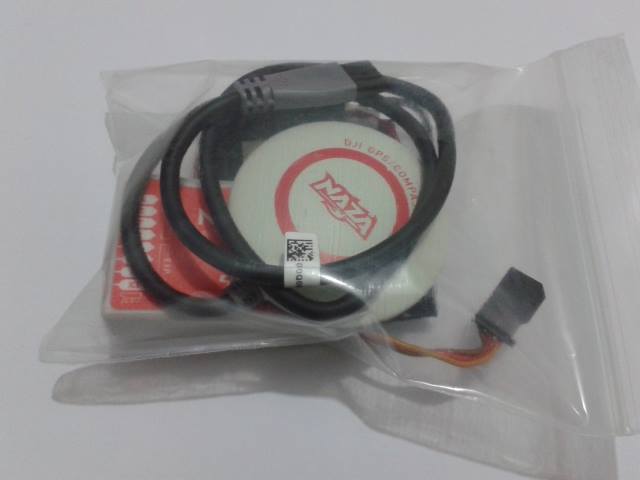

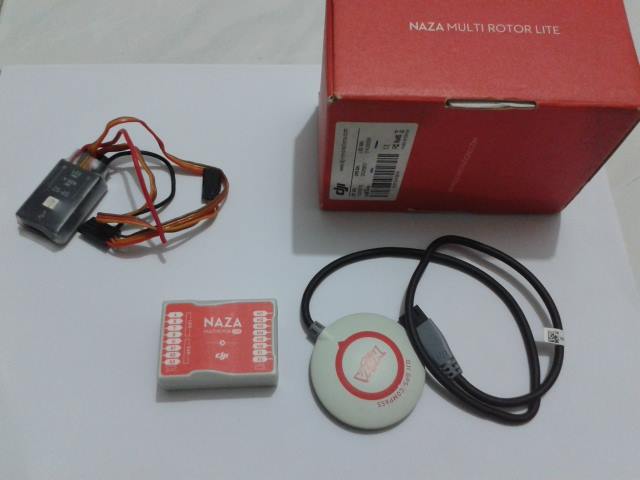

  The DJI Naza M Lite v1.1 with GPS is for the entry-level enthusiast, the DJI Naza M Lite v1.1 with GPS is a simplified version of DJI Naza M V2 GPS flight controller, and it inherits the high reliability and stability from the Naza M flight controller's heritage. The Naza M Lite controller has an all-in-one design that means the installation is easy and straightforward, while saving space and weight. In this small flight controller you will find there is inner damping, 3-axis gyroscope, 3-axis accelerometer and a barometer. The Naza M Lite measures flying altitude and attitude which is used for autopilot / automatic control for altitude hold, the GPS provides a position hold capability enjoyed on the Naza M V2 and DJI Wookong M flight controllers. The Naza M Lite GPS is the most cost effective solution to offer so much from the DJI Innovations line of flight controllers.



  The Naza M Lite v1.1 GPS system offers three flight modes, GPS Atti. Mode, Atti. Mode and Manual Mode. The pilot can switch between these modes to achieve different flight characteristics. A new feature for the Naza M Lite GPS is the automatic adjustment while in flight of the flight modes; the Naza M Lite v1.1 GPS will gently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure without user intervention.



  The Intelligent Orientation Control (IOC) means that no matter where the nose is pointing the forward direction is still the forward direction, and has nothing to do with nose direction, there is no need to be concerned with the loss of orientation when using the IOC mode, front will always be front, even when it's the back.



  If you have a transmitter which supports failsafe features compatible with the Naza M Lite, like the Futaba 8J, you can set the failsafe through port-U on the flight controller. The Naza controller has built in an auto level failsafe function, if the communication between Naza and the transmitter is lost, the outputs of all command sticks from the RC controller will default to the centre position, the GPS module allows you also set RTH (Return To Home) in the event of the failsafe being used. Please note, if your transmitter has only 4 channels, then MC will work in Atti. Mode by default without the failsafe function.



  The Naza M Lite GPS also has outputs for use with a servo operated gimbal, so adding a gimbal to the system is easy and straight forward with an easy to follow set-up and calibration procedure. Please note the Lite will not work with the DJI Zenmuse H3 3D Brushles Gimbal.





  Key features & Functions:



  • Manual Mode.

  • Atti. Mode.

  • GpsAtti.Mode.

  • Intelligent Orientation Control(CF): Course lock / Home lock.

  • Enhanced Fail-Safe:Landing / go home & landing.

  • Quad-rotor I, X; Hex-rotor I, V; Y, IY.

  • Combination Stick Command to start; Immediately Mode and Intelligent Mode to stop.

  • Remote gain tuning.

  • Two-axis gimbal supported.

  • S-Bus Support.

  • Voltage Monitor and Low Voltage Protection.

  • 4 channels transmitter support.

  • Five-level Motor Idle Speed adjustable in Motor Mixer.



  Specifications:



  Electrical &Mechanical
  Working Voltage Range	MC:4.8V~5.5V
  	VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
  Power Consumption	MAX1. 5W (0.3A@5V)
  	Normal:0.6W (0.12A@5V)
  Operating Temperature	-10°C ~ 50°C
  Weight	MC:25g
  	VU:20g

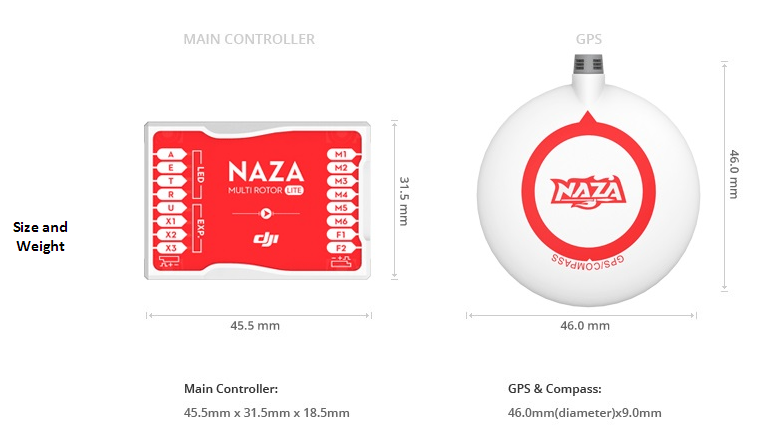

  Dimensions	MC: 45.5mm x 31.5mm x 18.5mm

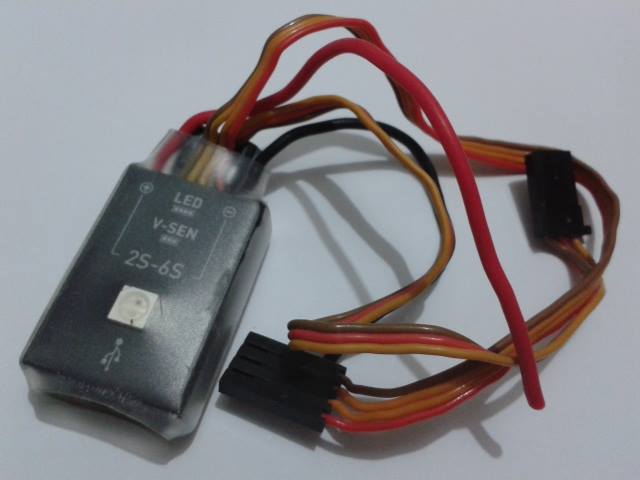

  	VU: 32.2mm x 21.1mm x 7.7mm
  Flight Performance (can be effected by mechanical performance and payloads)
  Max Yaw Angular Velocity	190° / s
  Max Tilt Angle	45°
  Ascent / Descent	±6m/s

  ALL-IN-ONE DESIGN





  For entry-level enthusiasts, DJI now brings out the most cost-effective solution, the NAZA-M Lite flight control system. As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.



  ADVANCED ATTITUDE STABILIZE ALGORITHM



  The advanced attitude stabilization algorithm not only inherits the outstanding flight stability of DJI products, but also provides excellent maneuverability. It is more flexible and stable, and gives the hobbyists a wonderful flight experience.



  MULTIPLE FLIGHT CONTROL MODE/INTELLIGENT SWITCHING



  It offers three types of control modes: GPS Atti. Mode (with GPS module), Atti. Mode, Manual Mode. The pilot can switch between the three modes to achieve different flight characteristics. It also can adjust automatically within the flight environment and intelligently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure. .



  GPS MODULE AVAILABLE/ACCURATE POSITION HOLD



  The plug and play GPS module will greatly enhance the performance for Aerial Photography with accurate Position Hold, Return-To-Home and Intelligent Orientation Control functionalities. With the GPS Module, the multi-rotor will have position and altitude locked accurately even in windy conditions. Hovering accuracy is approximately 2.5m horizontal and 0.8m vertical.



  INTELLIGENT ORIENTATION CONTROL (IOC)



  Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points,the forward direction has nothing to do with nose direction:

  In course lock flying, the forward direction is the same as a recorded nose direction. See the following figures(Mode 1)：

  In home lock flying, the forward direction is the same as the direction from home point to multi-rotor.See the following figures (Mode 2)：



  FAILSAFE MODE



  If your transmitter supports failsafe, then you can set failsafe through port-U. Naza controller has built-in auto level failsafe function, which means when the communication between MC and the transmitter is disconnected, the outputs of all command sticks from controller will go to center position. If the GPS module is used, you can also set RTH on failsafe. If your transmitter has only 4 channels, then MC will work in Atti. Mode by default without the failsafe function.



  LOW VOLTAGE PROTECTION



  In order to prevent your multi-rotor from crashing or other harmful consequences caused by low battery voltage, we have designed two levels of low voltage protection. You can choose not to use this, however we strongly recommend you to enable the protection. Both levels of protection have LED warning as default. The first level will blink the red light continuously; the second level will blink red light continuously and the multi-rotor will descend and land. In manual mode when low voltage protection is triggered the LED warning will be active only.



  MOTOR ARM AND MOTOR DIS-ARM



  There are four ways to start the motors, see the following picture:

  When you want to start the multi-rotor, you need to perform any of the ways of CSC. During the flight, if the motors stop, you can immediately execute the CSC and the motors will start. This enhances the safety of the multi-rotor; no uncontrolled starting of the motors.?

  Motor Disarm: There are two modes of Motor Disarm: namely Intelligent Mode and Immediate Mode. For more information, please refer to the user manual or DJI Wiki.



  SUPPORT FUTABA S-BUS AND PPM RECEIVER



  Minimum Four channel receiver supported, also PPM and Futaba S-Bus receiver supported.
  PPM & S-Bus receivers (the general use of the first 8 channels of S-Bus receiver) to optimize the channel connection, the A, E, T, R, U five-channel functions are set using channel X2, use only one servo cable to connect the PPM or S-Bus to X2, this makes installation quick and easy, not easy to make mistakes.



  SUPPORTED MULTI-ROTOR TYPES



  Naza-M Lite now supports six types of multi-rotor, which meets the different needs of the enthusiasts.
  Quad I, Quad X;
  Hexa I, Hexa V, Hexa Y, Hexa IY;



  BUILT-IN GIMBAL STABILIZATION FUNCTION



  The gimbal stabilization module is compatible with almost all 2-axis gimbal systems. The system will adjust the gimbal and camera according to the attitude of the aircraft after setting the parameters the first time.



  REMOTE ADJUSTMENT



  The default parameter settings are OK for you to achieve a normal flight, and it also supports remote parameter adjustment by using a control slider on the TX during flight, in order to obtain better performance.
