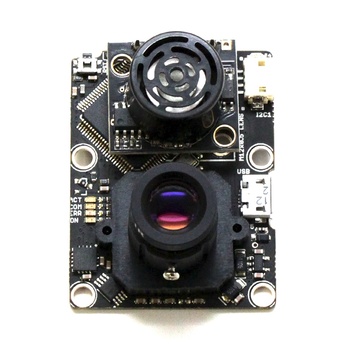

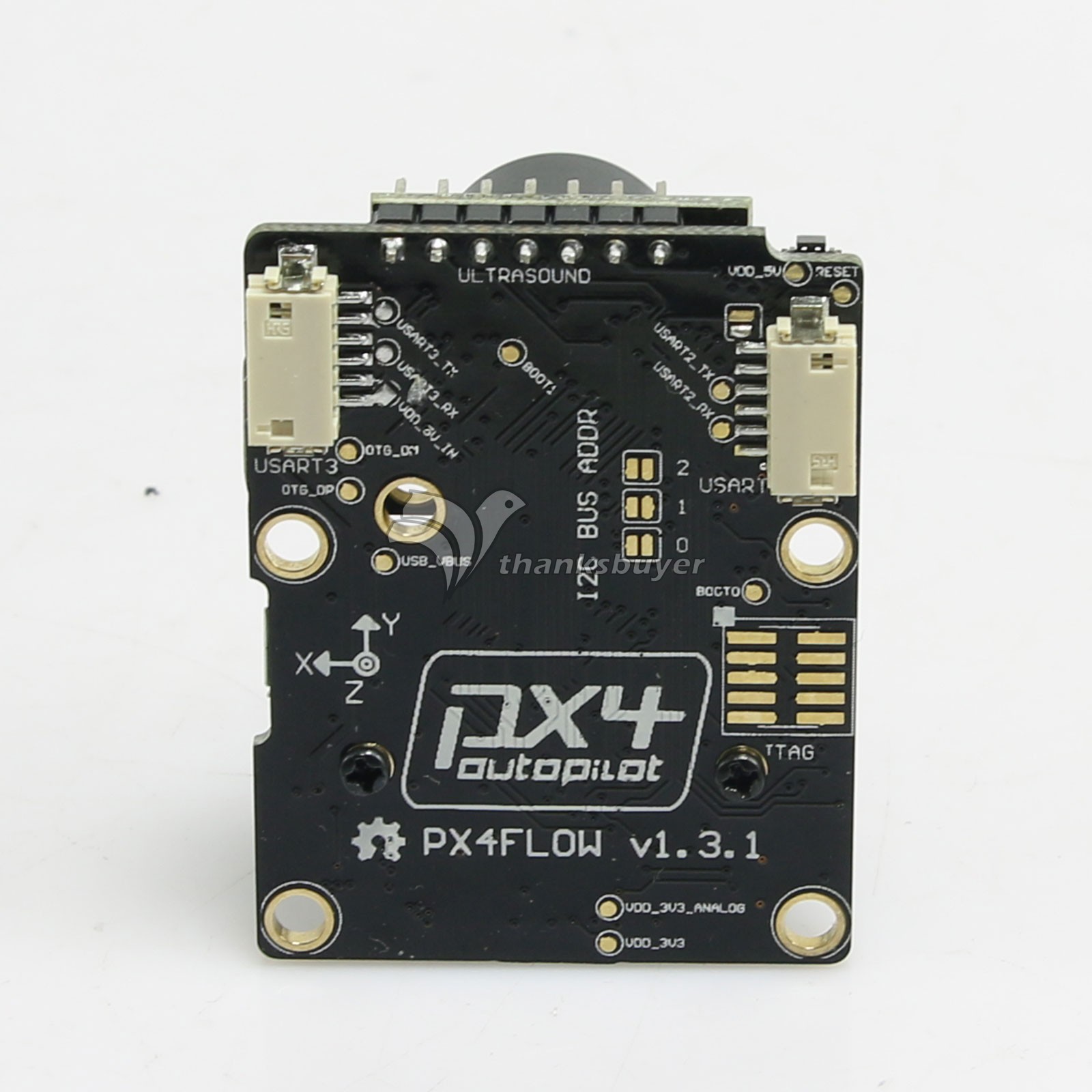

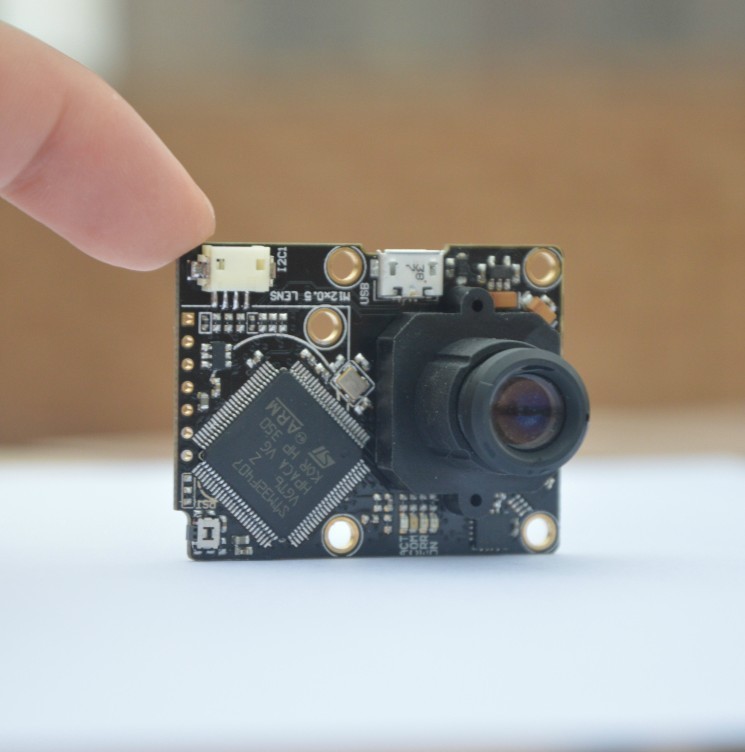

PX4FLOW Smart Camera

PX4FLOW V1.3.1 Optical Flow Smart Camera PX4 PIXHAWK Compatible

Introduction:
PX4Flow is an optical flow smart camera. It has a native resolution of 752×480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Hardware Specifications:
- 168 MHz Cortex M4F CPU (128 + 64 KB RAM)
- 752×480 MT9V034 image sensor, L3GD20 3D Gyro
- 16 mm M12 lens (IR block filter)
- Size 45.5 mm x 35mm
- Power consumption 115mA / 5V
