How to setup ESky TWF-SZ 0406A 6CH Transmitter with XTR

Step 1

Turn OFF the remote, remove the crystal (TX+RX) from the transmitter.

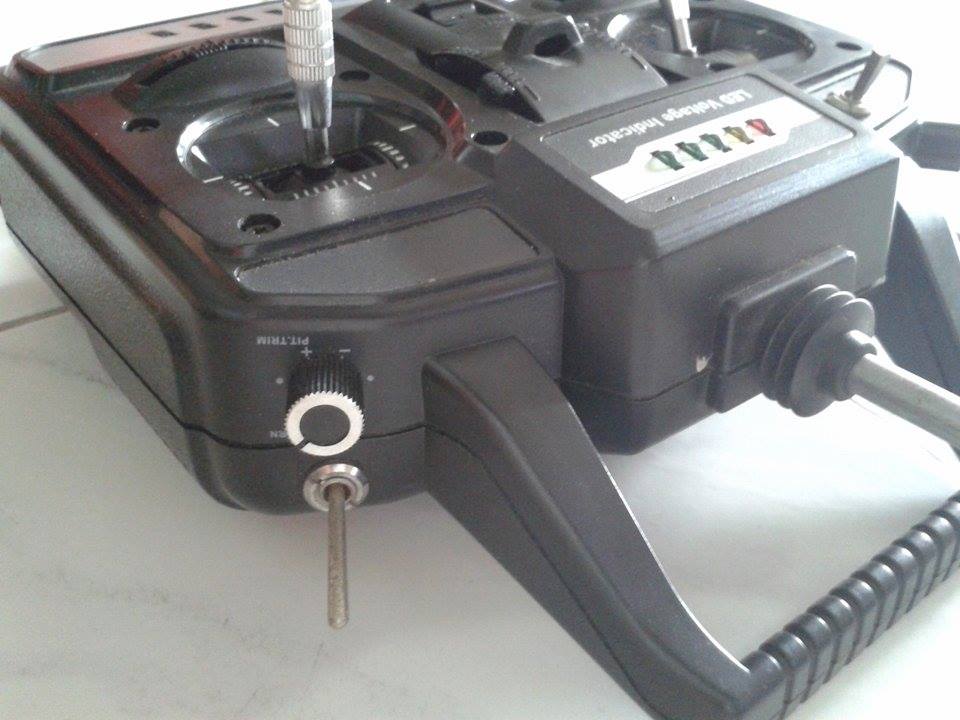

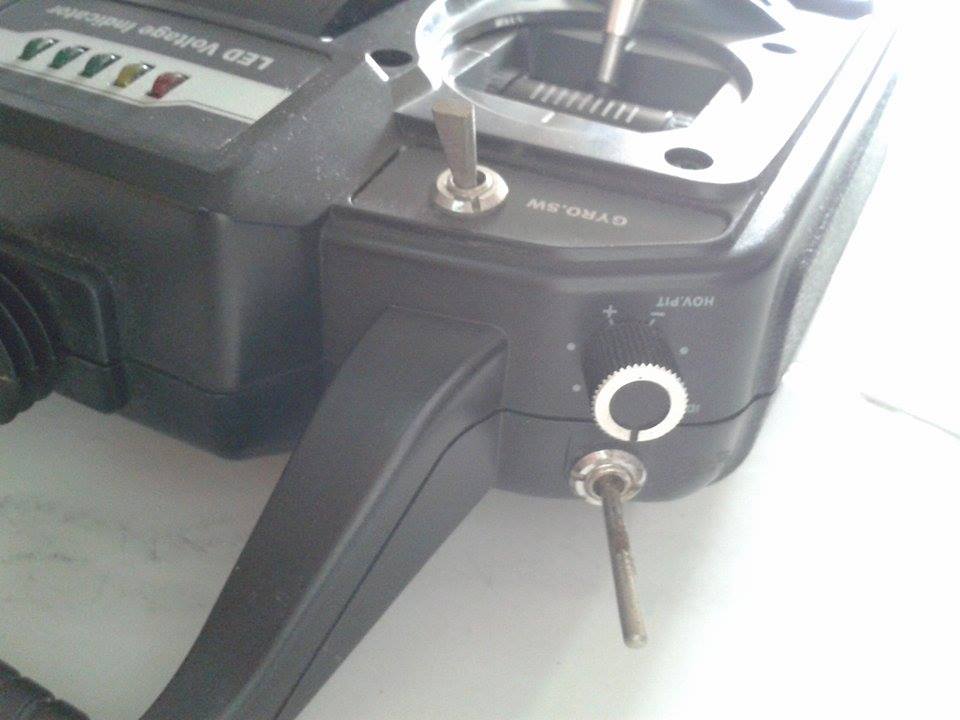

Make sure the HOV. PIT is set to min. value:

Step 2

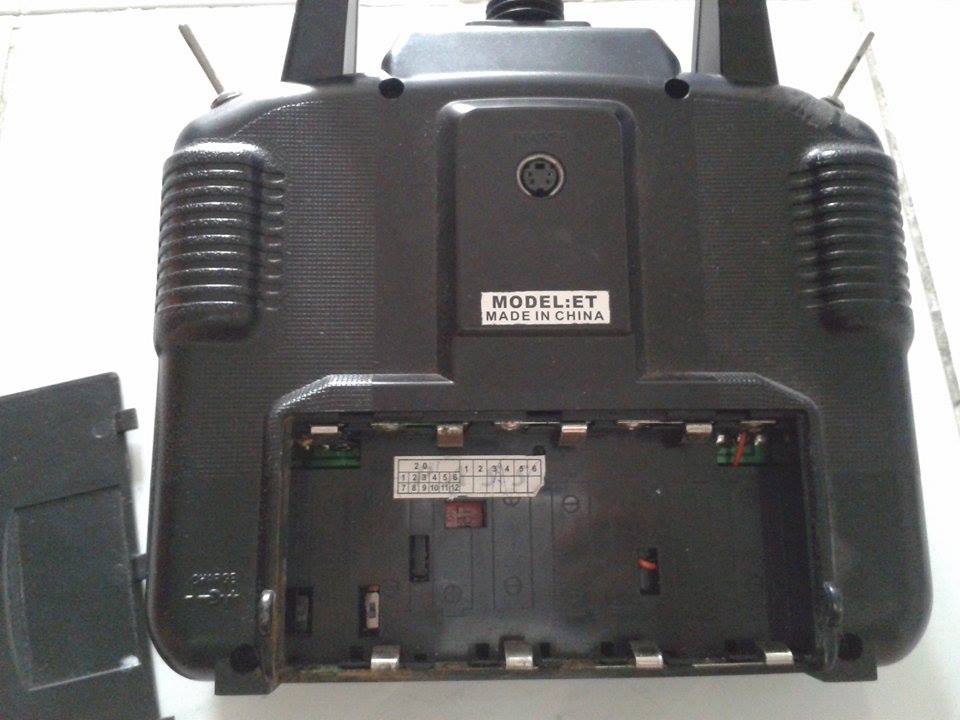

Remove battery case.

Step 3

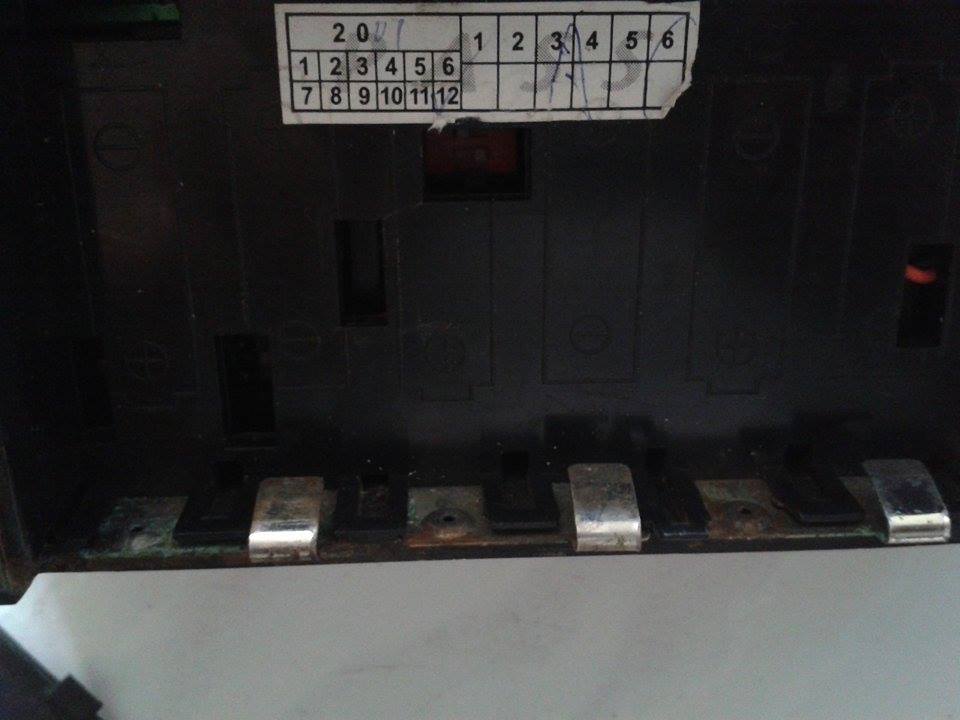

Find the jumper, SET:

1. Jumper: 2 (TOP) to OFF (RIGHT)
2. Jumper: 1 (BOTTOM) to ON (LEFT)

Step 4

Plug the XTR cable, turn on the TX and open the XTR simulator:

Go to Menu --> Radio --> Assign Channel

http://www.rc-fever.com/index.php?route=da_page/page&page_id=14

A guide to the standard radio control gear that comes with the ESky King/King 2 and Belt-CP.

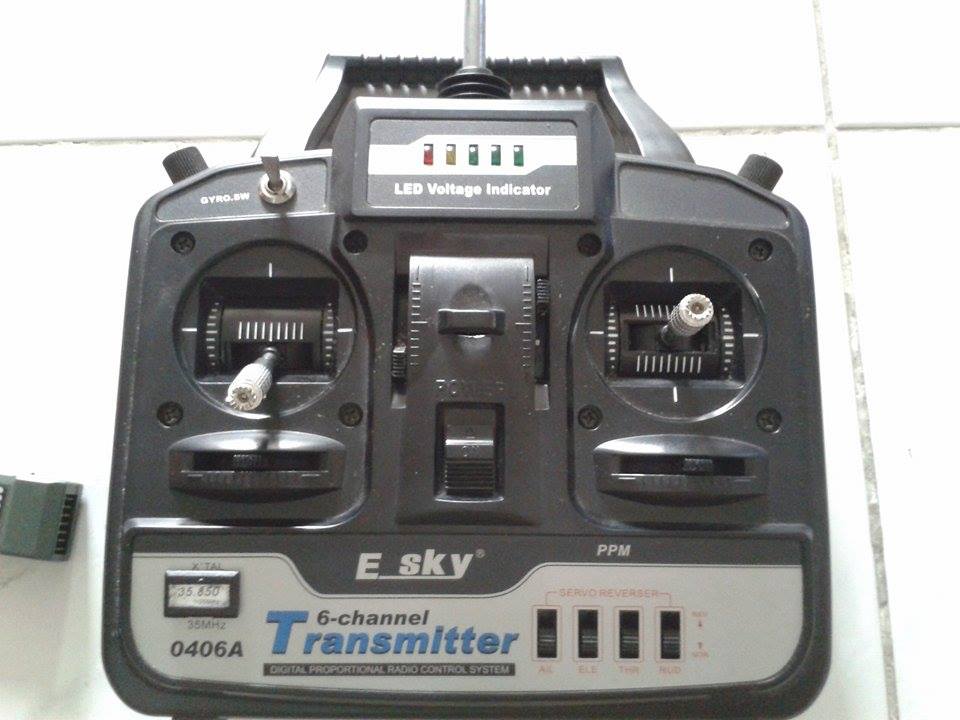

• ESky Transmitter - EK2-0406A

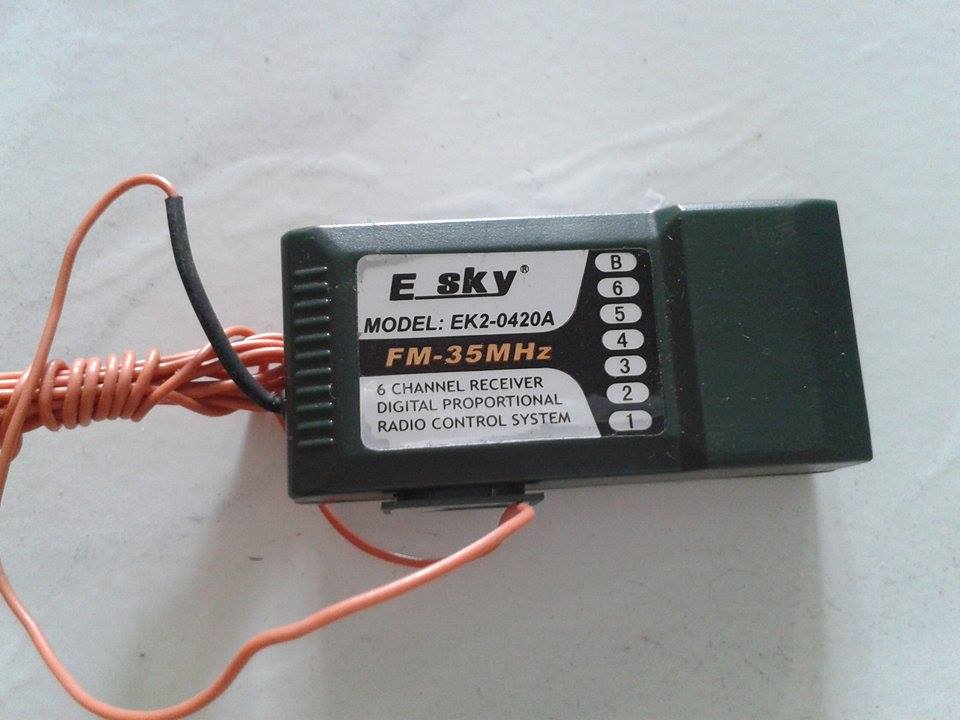

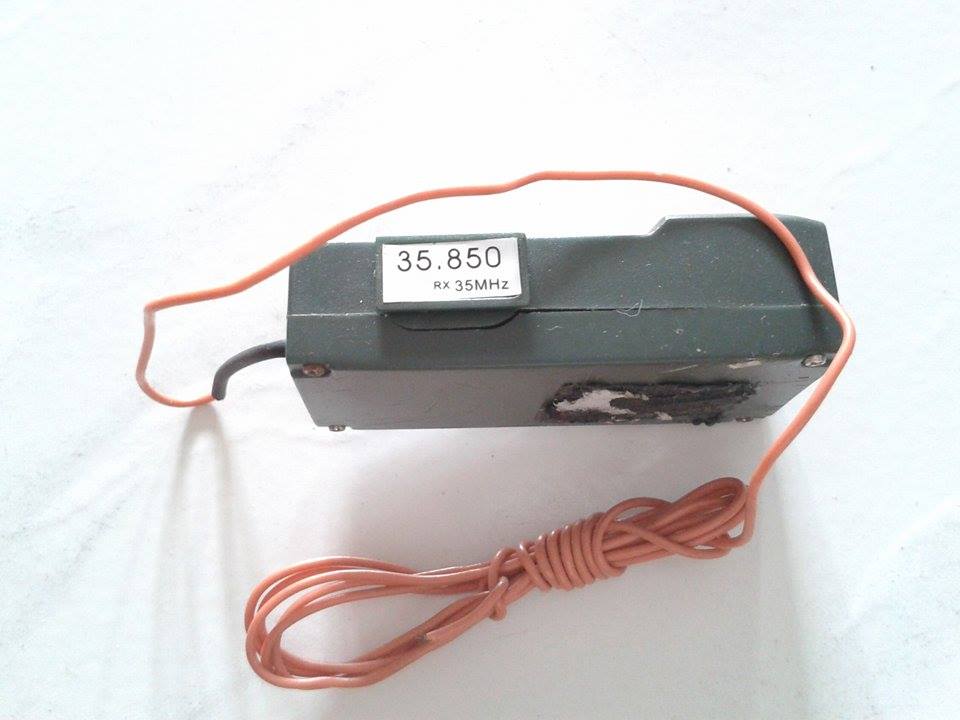

• ESky Receiver - EK2-0420A
• ESky Pro Gyro - EK2-0704

1. IDLE UP - Normal or Stunt 3D mode (towards back is Normal).
2. PITCH TRIM knob - to increase or decrease the pitch trim of main rotors.
3. GYRO switch to turn the gyro OFF or ON (not functional with ESky Pro gyro)
4. LEFT CONTROL STICK (Throttle & Rudder) - UP to increase rotor speed and apply positive pitch to main blades - DOWN to decrease rotor speed and apply negative pitch. Push LEFT to turn helicopter nose left and push RIGHT to turn helicopter nose right.
5. TRIMS - one for each control axis - for fine tuning main controls (trimming).
6. CRYSTAL BOX - houses radio frequency crystal (X'tal)
7. LED transmitter voltage Indicator
8. TRAINER SWITCH - for switching control between two connected transmitters.
9. THROTTLE CURVE PITCH knob to increase your throttle Pitch range. Turn anti-clockwise to DECREASE throttle motor RPM curve. Turn clockwise to INCREASE throttle rotor rpm curve.
10. RIGHT CONTROL STICK (Elevator & Aileron) - Up to make the helicopter tilt forward. Pull it back to make the helicopter tilt backward. Move it left to make the helicopter tilt left (and move sideways) and right to tilt right.
11. POWER ON/OFF switch (applies to transmitter only)
12. REVERSE SWITCHES - to control direction of movement of servos connected to the receiver.
