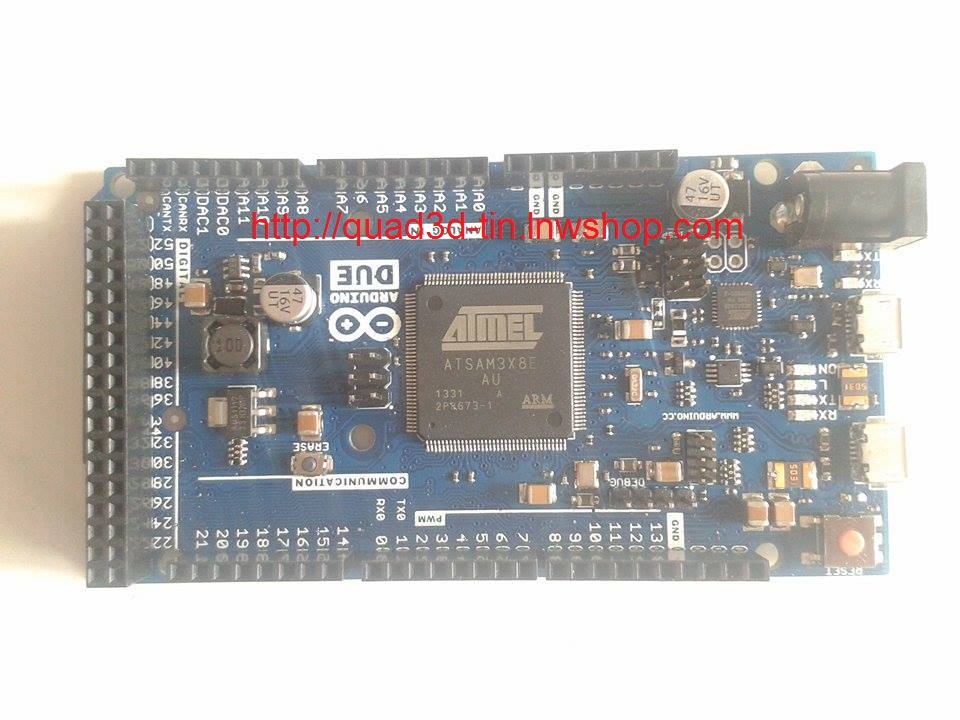

Arduino Due 32bit

ราคาแพงเพราะ คิดค่าโปรแกรม Code  https://github.com/QuadTinnakon

และรับประกันสินค้าหากเสียหายใช้งานไม่ได้

ARM Core benefits

The Due has a 32-bit ARM core that can outperform typical 8-bit microcontroller boards. The most significant differences are:

• A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock. (for more information look int type page).
• CPU Clock at 84Mhz.
• 96 KBytes of SRAM.
• 512 KBytes of Flash memory for code.
• a DMA controller, that can relieve the CPU from doing memory intensive tasks.

Schematic, Reference Design & Pin Mapping

EAGLE files: arduino-Due-reference-design.zip

Schematic: arduino-Due-schematic.pdf

Pin Mapping: SAM3X Pin Mapping page

Summary
