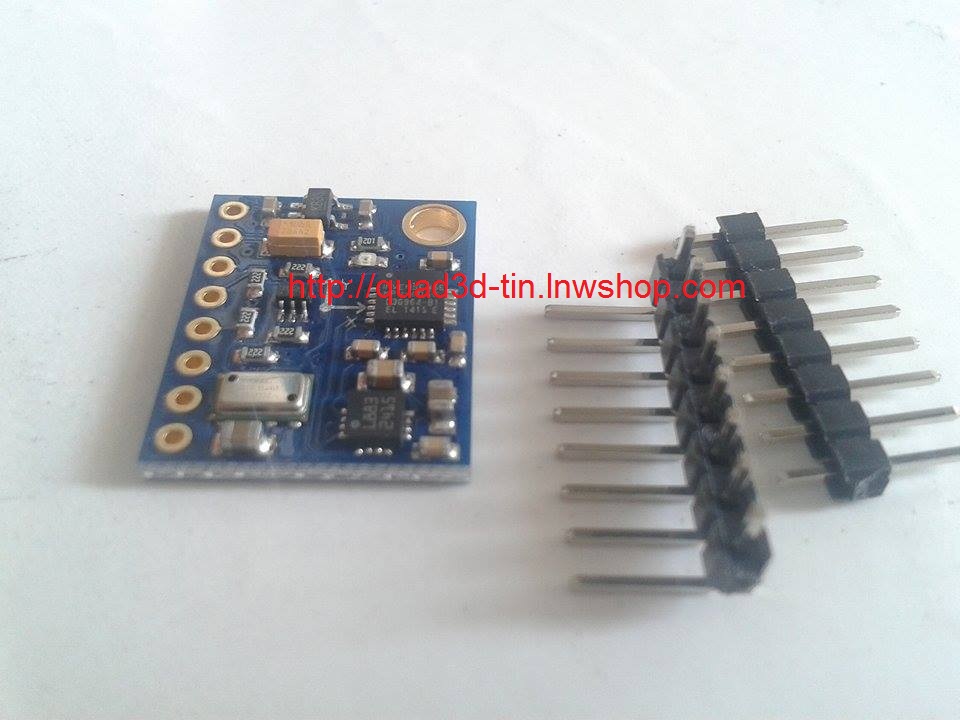

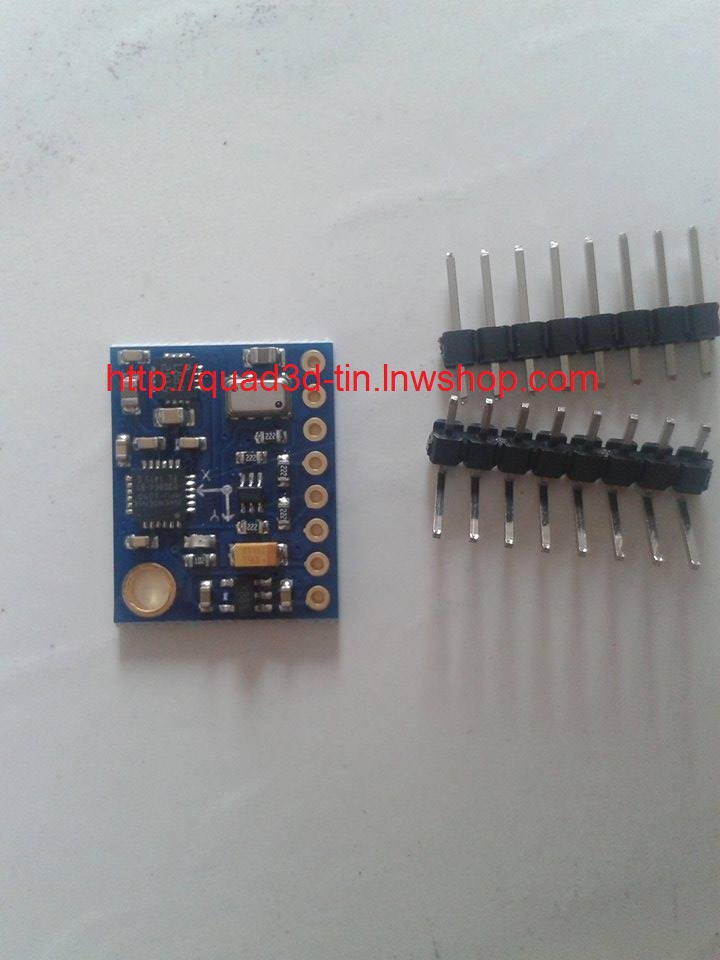

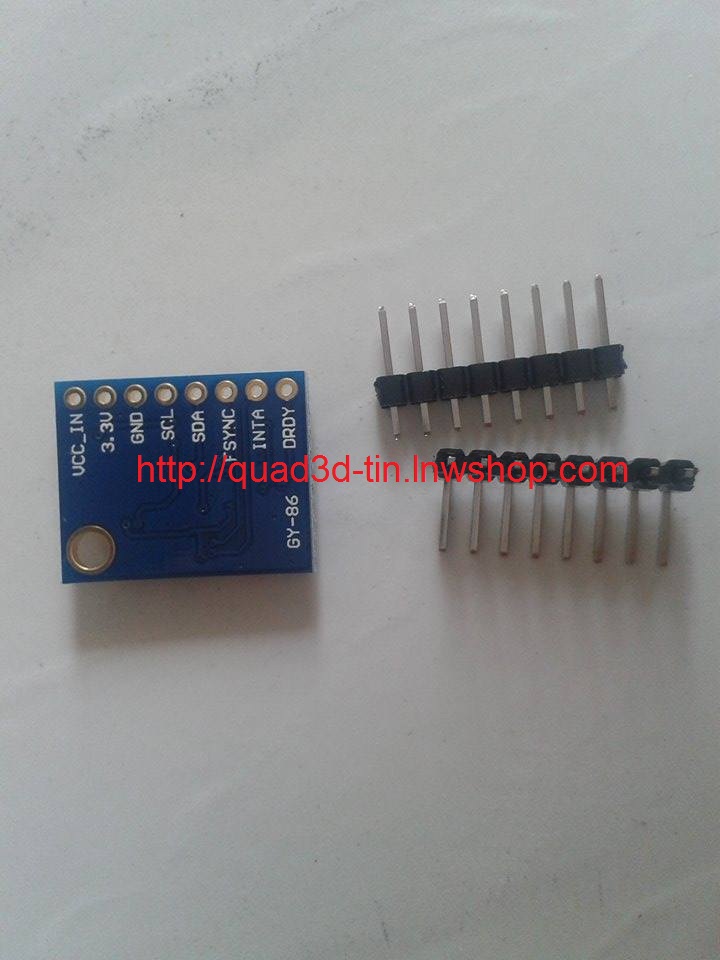

GY-86 IMU/10DOF (MPU6050 + HMC5883L + MS5611)

ราคาแพงเพราะ คิดค่าโปรแกรม Code  https://github.com/QuadTinnakon

และรับประกันสินค้าหากเสียหายใช้งานไม่ได้

Overview:

GY-86 is a sensor board with the MPU-6050 and a magnetometer (HMC5883) and barometer (MS5611). The sensor board contains a voltage regulator, so it can be used with 5V. There seems to be also a level shifter on the board for the I2C-bus. The pull-up resistors for the I2C-bus seems to be 2k2, which is rather low.

Features:

- 10 DOF modules (three-axis gyroscope + triaxial accelerometer + three-axis magnetic field + Pressure)

- Immersion Gold PCB using technology

- Use chip: MPU6050 + MS5611 + HMC5883L

- Power supply: 3-5v

- Communication: IIC communication protocol (fully compatible with 3-5v system, including the LLC circuit)

- Size: 2.2cm * 1.7cm
